產品型號: Type90RI
產品名稱:90型直線皮帶輸送機
使用90mm鋁合金型材支架,皮帶傳送、驅動,直線輸送,兩端頭為滾筒,續接方便。
>>說明
1.定速:1.1~40m/min
2.變速:0.4~40m/min
3.幅寬: 200mm~1000mm
4.搬送能力: max約100kg
>>仕様

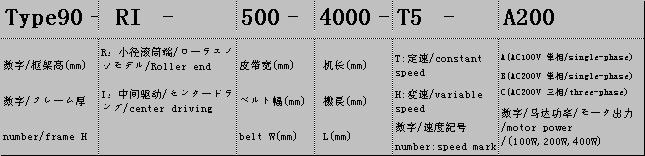

選型標記方法
(單位:mm)

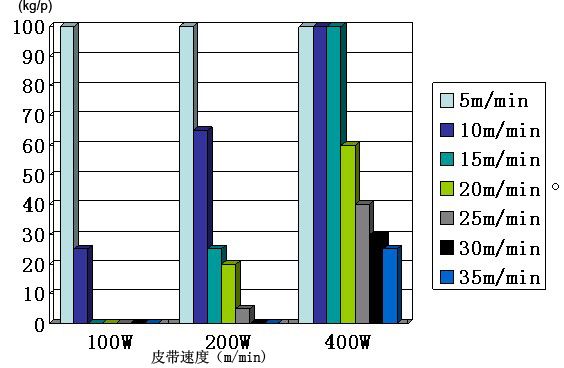

搬送能力表(定速)
皮帶速度表
減 速 比 | 速度記號 | 定速(m/min) 50/60Hz | 速度記號 | 変速(m/min) 50?60Hz | |||||
1/450 | T1 | 1.1/1.3 | H1 | 0.37~1.1/0.45~1.3 | |||||
1/375 | T2 | 1.4/1.6 | H2 | 0.45~1.4/0.54~1.6 | |||||
1/300 | T3 | 1.7/2.0 | H3 | 0.56~1.7/0.68~2.0 | |||||
1/200 | T4 | 2.6/3.1 | H4 | 0.85~2.6/1.0~3.1 | |||||
1/160 | T5 | 3.2/3.8 | H5 | 1.1~3.2/1.3~3.8 | |||||
1/120 | T6 | 4.3/5.1 | H6 | 1.4~4.3/1.7~5.1 | |||||
1/100 | T7 | 5.1/6.1 | H7 | 1.7~5.1/2.0~6.1 | |||||
1/80 | T8 | 6.4/7.7 | H8 | 2.1~6.4/2.6~7.7 | |||||
1/60 | T9 | 8.5/10.2 | H9 | 2.8~8.5/3.4~10.2 | |||||
1/50 | T10 | 10.2/12.2 | H10 | 3.4~10.2/4.1~12.2 | |||||
1/40 | T11 | 12.8/15.3 | H11 | 4.3~12.8/5.1~15.3 | |||||
1/30 | T12 | 17.0/20.4 | H12 | 5.7~17.0/6.8~20.4 | |||||
1/25 | T13 | 20.4/24.5 | H13 | 6.8~20.4/8.2~24.5 | |||||
1/20 | T14 | 25.5/30.6 | H14 | 8.5~25.5/10.2~30.6 | |||||
1/15 | T15 | 34.0/40.8 | H15 | 11.3~34.0/13.6~40.8 |
